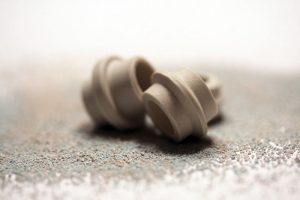

Ceramic ribbed and grooved bushings are commonly used to support wires and rods and as guides in high voltage electrical equipment.
Click on dimension header to list by size
| Part No. | Material | Rib OD | ID | Length |
|---|---|---|---|---|
| A-0238 | L-3 Steatite | 0.688 | 0.383 | 0.375 |
| A-3021 | L-3 Steatite | 0.875 | 0.475 | 0.495 |
| A-4244 | L-3 Steatite | 0.750 | 0.400 | 0.660 |
| A-4156 | L-3 Steatite | 0.750 | 0.322 | 0.630 |
| A-2122-1 | L-3 Steatite | 0.750 | 0.375 | 0.625 |
| A-3900 | L-3 Steatite | 0.748 | 0.201 | 0.630 |
| A-3099 | L-3 Steatite | 0.730 | 0.380 | 0.500 |
| A-1025 | L-3 Steatite | 0.730 | 0.380 | 0.440 |
| EM-2776 | L-3 Steatite | 0.688 | 0.383 | 0.500 |
| A-2597 | L-5 Steatite | 0.875 | 0.457 | 0.507 |
